產品描述

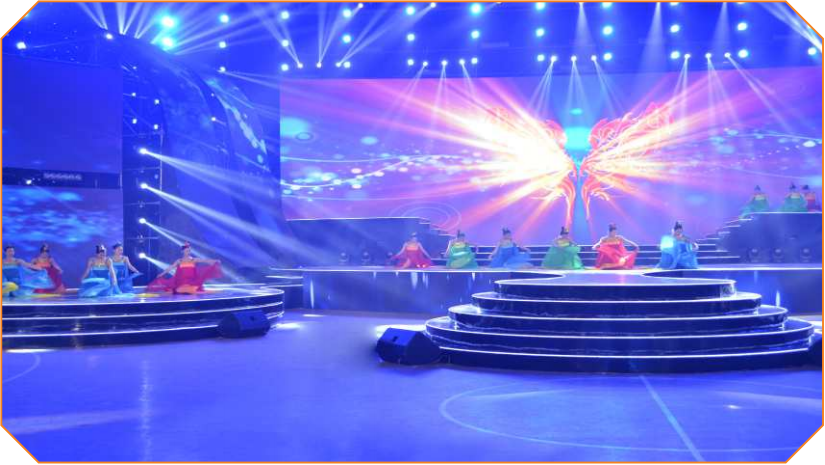

效果圖

EFFECT

技術參數

SPECIFICATIONS

型 號：LP-336

名 稱：LED防水染色投光燈

額定電壓：AC100V～240V,50～60Hz

功 率：108W

LED 燈珠：節能36顆*3W.RGB各12顆燈珠

光學透鏡：白色座高光效25度透鏡（可選8/15/45/60度）

通 道：7CH

控制模式：DMX-512控制操作、主從機模式、單機模式

顏 色：連續的紅綠藍和白色的顏色轉換,

RGB無限混色彩虹效果,可調速

調 光：0—100%

顯 示：四位八段數碼管

頻 閃：電子頻閃1-25fps/秒,隨機頻閃,按順序跳動,

變速頻閃（從慢到快）,混合頻閃

（頻閃+底色、頻閃+漸變）

散 熱：通過優質壓鑄鋁散熱片對流冷卻

防護等級：IP66

燈體尺寸：L245*W192*H285mm

燈體重量：4.2KG

包裝規格：紙箱6只裝

外箱尺寸：770*515*295mm

整箱重量：30KG

技術特點：

*信號保護功能，防雷擊、防閃電

*具有感應溫度保護裝置

*科學合理的燈珠排列結構

*具有高效散熱控制系統

*全新綜合調控系統

*易于拆裝的結構

*產品通過CE、ROHS認證

*符合GB7000.201-2008和GB7000.1-2007國家檢驗標準

Name : LED waterproof washing led par light

Model No.: LP-336

Voltage: AC100V ~ 240V, 50 ~ 60Hz

Total power: 108 w

Lamp beads: 36*3w , RGB/12

Beam angle: 25 degree (8/15/45/60? optional)

Color: continuous red, green, blue, white color

conversion, RGB unlimited color mixing

rainbow effect, adjustable speed

Housing : die-casting aluminum

Strobe: electron stroboscopic 1-25fps/ sec

Dimming: 0-100% linear dimming

Cooling system:forced convection cooling

Control mode: DMX512 , master-slave , stand alone mode

Channel : 7CH

Display: four 8-segment digital tube

IP Rating: IP66

Dimention: L245*W192*H285(mm)

N.W. : 4.2KG

Package : 6pcs in a carton

Package dimension : 770*515*295mm

Carton gross weight : 30KG

Product features:

*signal protection function. (provide certification

documents issued by national authorities)

*unique arrangement of lamp beads to enhance light

efficiency (provide certification documents issued by

national authorities)

*products passed CE.ROHS certification

(provide supporting documents)

*the product conforms to the national inspection standards

of GB7000.201-2008 and GB7000.1-2007 lamps and

lanterns(providing third-party inspection report support-

ing documents)

*good heat dissipation performance, so that its control

system can run stably
