產品描述

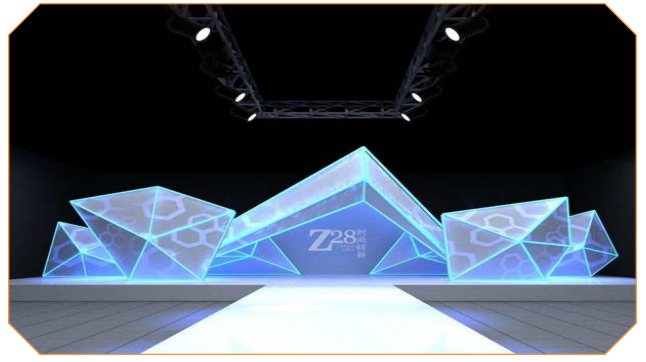

效果圖
EFFECT
技術參數
SPECIFICATIONS
型 號:VRC-200DN
名 稱:LED電動變焦成像燈
額定電壓:AC100V-240V,50/60Hz
功 率:200W
光 源:節能LED模組一顆200W
色 溫:3200K/4200K/5600K可選
顯色指數:≥Ra92,也可定制更高顯色指數≤98
光 學:4組膠合鏡玻璃光學,可加LOGO片
控制模式:DMX512,主從機模式,單機模式,手動模式
通 道:2/4/6CH選擇
調 光:線性0—100%
頻 閃:1-25次/秒
調焦角度:電動17-60度,可加光圈調節最小2度。
散 熱:內置集成散熱鋁片加銅管,智能靜音風機輔助散熱
防護等級:IP20
燈體尺寸:725*370*200mm
燈體重量:13KG
包裝規格:紙箱一只裝
技術特點:*信號保護功能,防雷擊、防閃電
*具有感應溫度保護裝置
*最新技術光學系統
*具有高效散熱控制系統
*全新綜合調控系統
*產品通過CE、ROHS認證
*符合GB7000.201-2008和GB7000.1-2007國家檢驗標準
Model No.: VRC-200DN
Name: LED electric zoom profile spot light
Rated voltage: ac100v-240v, 50/60hz
Power: 200 w
Light source: one energy-saving LED module is 200W
Color temperature: 3200K/4200K/5600K optional
Color rendering index: ≥Ra92, or customized higher color
rendering index ≤98
Optics: 4 sets of gluing mirror glass optics,
can add LOGO plate
Control mode: DMX512, master slave mode, stand-alone
mode, manual mode
Channel: 2/4/6CH option
Dimming: linear 0-100%
Strobe: 1-25 times/SEC
Focus Angle: electric 17-60?, can add aperture to
adjust the minimum 2?
Heat dissipation: built-in integrated heat dissipation
aluminum plate plus copper tube,
intelligent quiet fan assisted heat dissipation
Protection level: IP20
Lamp body size: 725*370*200mm
Lamp weight: 13KG
Packing specification: one carton
Technical features:
* signal protection function, anti - lightning, anti - lightning
* with induction temperature protection device
* latest technology optical system
* with efficient heat dissipation control system
* new integrated control system
* products have passed CE and ROHS certification
* comply with gb7000.201-2008 and gb7000.1-2007
national inspection standards
